Nuvo-7000E/P/DE

Introducing Neousys Technology’s 2018 flagship rugged fanless embedded computers, the new Nuvo-7000 series, powered by Intel® 8th-Gen Core™ i processors with up to 6-core/ 12-thread architecture that offer significant performance improvement over previous 6th and 7th-Gen platforms.

Nuvo-7000 series includes Neousys’ track-proven technologies for superior ruggedness and versatility, such as effective fanless design, patented expansion Cassette and proprietary MezIO™ interface. It also incorporates cutting-edge computer I/O like USB 3.1 Gen2 with up to 10 Gbps throughput and M.2 2280 M key socket for NVMe SSD or Intel® Optane™ memory for ultimate system performance. The plethora of on-board I/O ports (GbE, USB and COM) feature sophisticated protection circuits to endure stress from ESD and power surge. This makes Nuvo-7000 series by far the most rugged embedded computer we’ve ever created.

Categories: ,

Description

Intel® 8th-Gen Coffee Lake Core™ i7/i5/i3 fanless embedded computer with 6x GbE ports, patented cassette & MezIO™ interface

Flexible and versatile for a variety of applications, Nuvo-7000 variants are available with different Cassette expansion options. With Neousys Nuvo-7000 series, you get a true rugged platform that can accommodate a single PCIe card (Nuvo-7000E), dual PCIe cards (Nuvo-7000DE) or a single PCI card (Nuvo-7000P) according your application needs.

  • Intel® 8th-Gen Core™ i hexa-core 35W/ 65W LGA1151 CPU
  • Patented Cassette for PCI/PCIe add-on card accommodation
  • MezIO™ interface for easy function expansion
  • Rugged, wide temperature range from -25°C to 70°C fanless operation
  • Up to 6x GigE ports, supporting 9.5 KB jumbo frame
  • M.2 2280 M key socket (Gen3 x4) supporting NVMe SSD or Intel® Optane™ memory
  • 4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
  • VGA/ DVI/ DP triple independent display, supporting 4K2K resolution

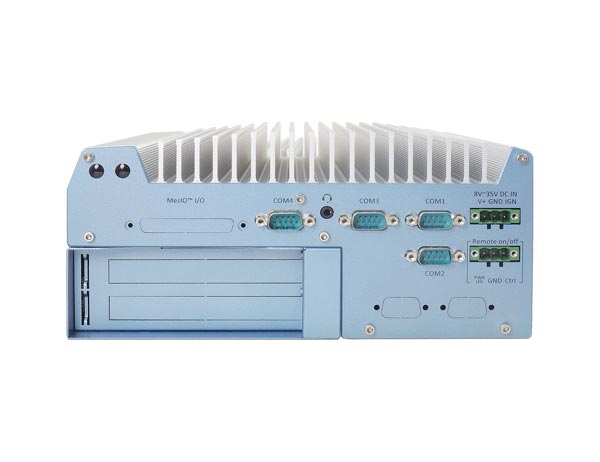

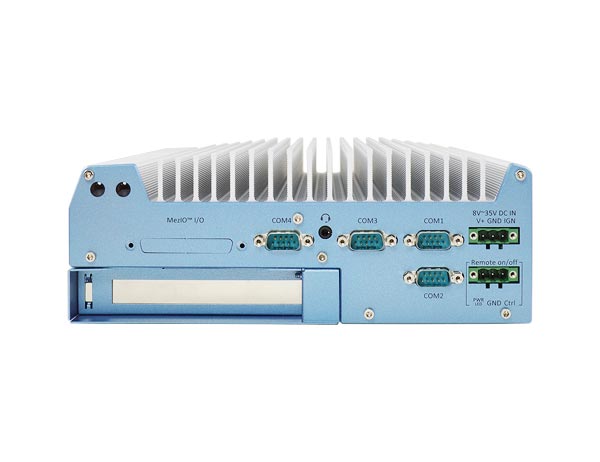

nuvo-7000ep-8th-gen-coffeelake-rugged-fanless-computer-rear-panel

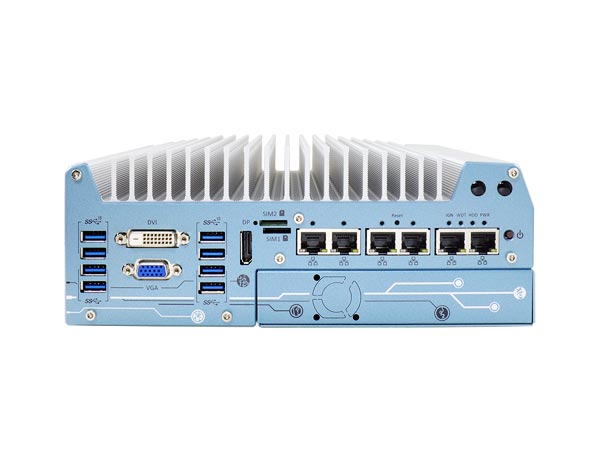

nuvo-7000ep-8th-gen-coffeelake-rugged-fanless-computer-front-panel

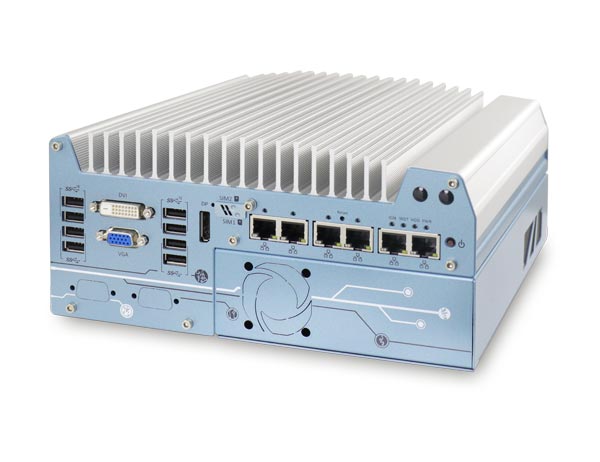

nuvo-7000de-8th-gen-coffeelake-rugged-fanless-computer
nuvo-7000dep-8th-gen-coffeelake-rugged-fanless-computer-rear-panel

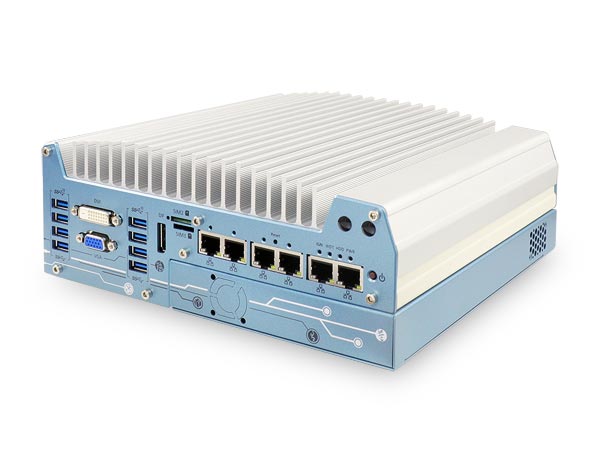

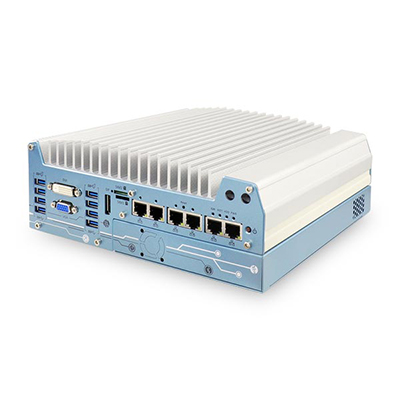

nuvo-7000ep-8th-gen-coffeelake-rugged-fanless-computer
nuvo-7000ep-8th-gen-coffeelake-rugged-fanless-computer-rear-panel
nuvo-7000ep-8th-gen-coffeelake-rugged-fanless-computer-front-panel
nuvo-7000de-8th-gen-coffeelake-rugged-fanless-computer
nuvo-7000dep-8th-gen-coffeelake-rugged-fanless-computer-rear-panel
nuvo-7000ep-8th-gen-coffeelake-rugged-fanless-computer
  • Intel® 8th-Gen Core™ i hexa-core 35W/ 65W LGA1151 CPU
  • Patented Cassette for PCI/PCIe add-on card accommodation
  • MezIO™ interface for easy function expansion
  • Rugged, wide temperature range from -25°C to 70°C fanless operation
  • Up to 6x GigE ports, supporting 9.5 KB jumbo frame
  • M.2 2280 M key socket (Gen3 x4) supporting NVMe SSD or Intel® Optane™ memory
  • 4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
  • VGA/ DVI/ DP triple independent display, supporting 4K2K resolution
